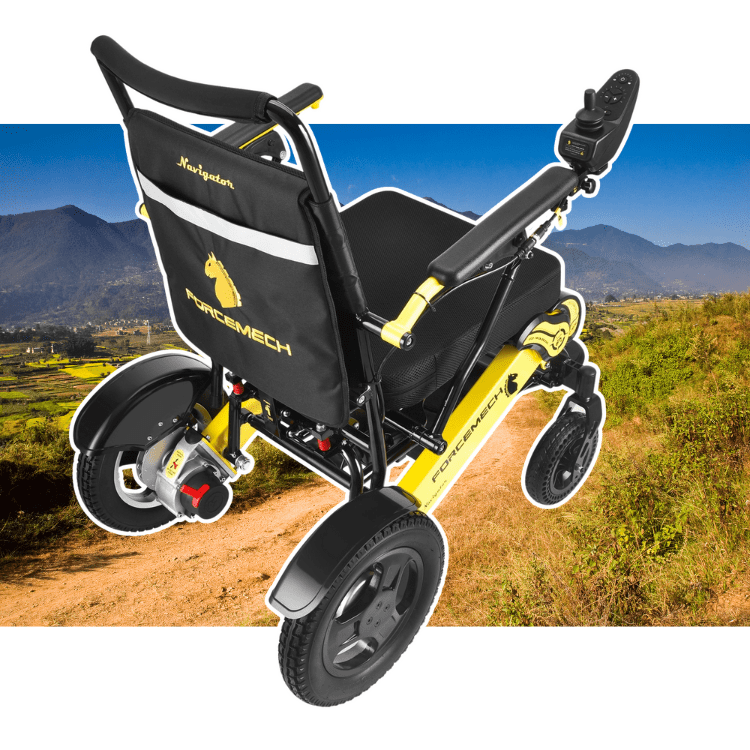

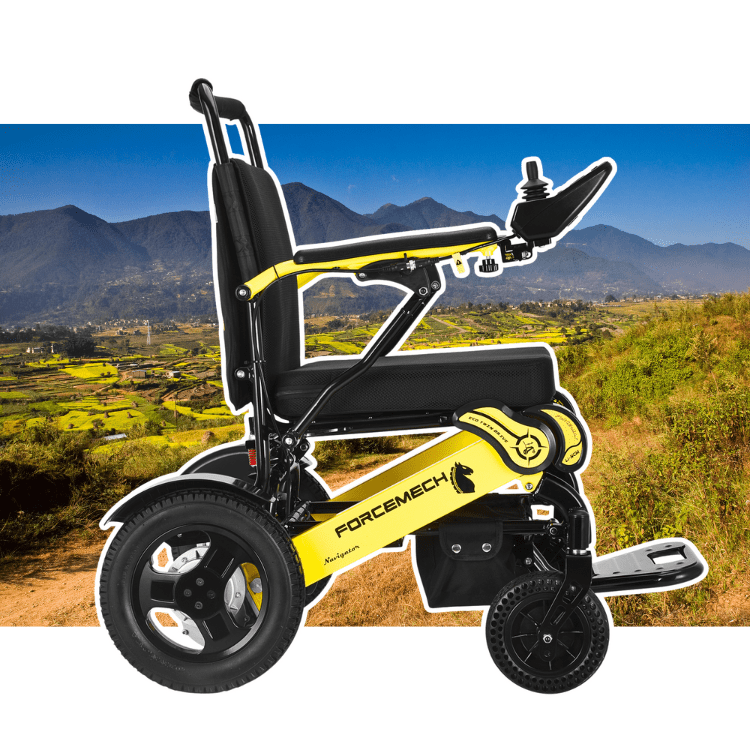

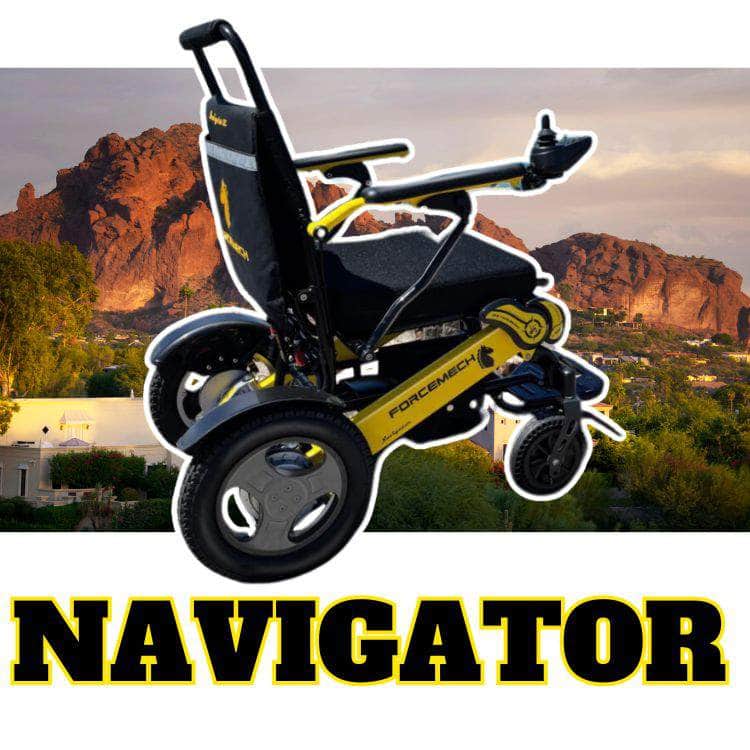

Forcemech Navigator Portable Electric Wheelchair: Your Ticket to Freedom
Are you tired of feeling limited by your mobility challenges? The Forcemech Navigator Portable Electric Wheelchair is here to change your life. With its lightweight yet powerful design, it’s crafted to give you back the freedom to explore and live fully without relying on anyone else.
Compact, Travel-Ready Design of the Forcemech Navigator Portable Power Wheelchair

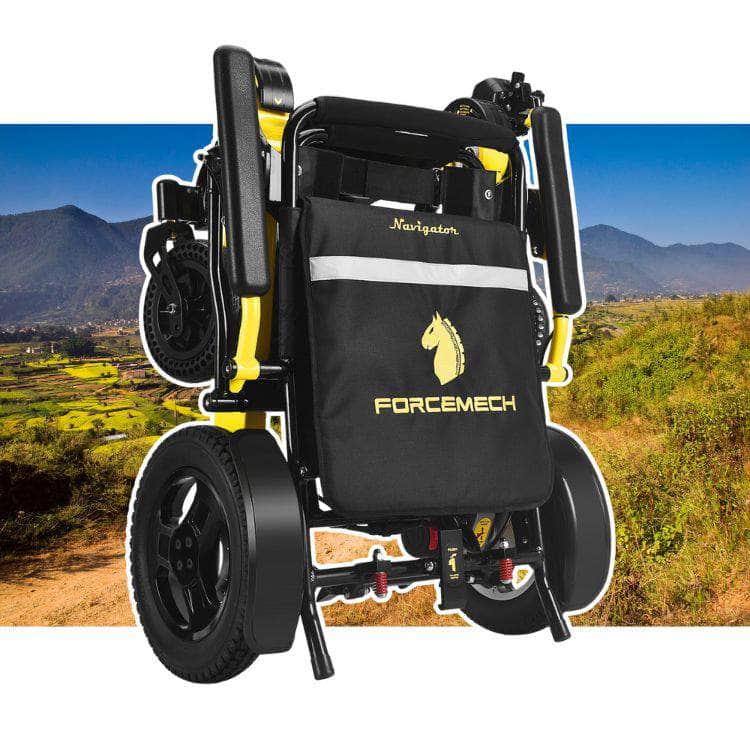

No need to stress about lugging around a bulky wheelchair. The Forcemech Navigator Foldable Power Wheelchair easily folds down for compact storage, fitting snugly into the trunk of your car. Its lightweight frame ensures that lifting and stowing it is a breeze.
Airline & Cruise Approved for the Forcemech Navigator Portable Electric Wheelchair
Planning a big trip? The Forcemech Navigator Portable Power Wheelchair is airline and cruise-ready, making it your perfect travel companion. No more sitting out on family vacations—now you can roll into every adventure confidently.
Enhanced Controller & Performance for the Forcemech Navigator Foldable Electric Wheelchair
The 2025 model introduces exciting upgrades, including a new LED display controller and refined motors. Translation? You get smoother handling, improved power efficiency, and an all-around better ride experience.

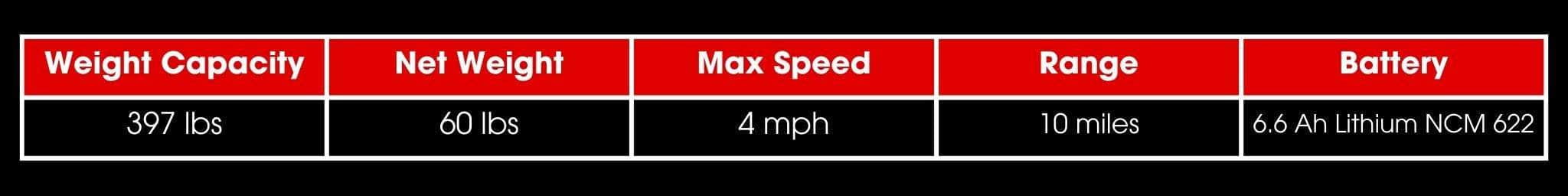

Forcemech Navigator Portable Electric Wheelchair Specifications
| Power Chair Weight (Incl. Batteries) | 60 lbs |
| Maximum Weight Capacity | 397 lbs |
| Maximum Climbing Slope | 6 degrees |
| Maximum Speed | 4 mph |
| Maximum Travel Distance | 10 miles |
| Unfolding Dimensions (L x W x H) | 38" x 25" x 37" |
| Folding Dimensions (L x W x H) | 25" x 14" x 31" |
| Armrest Height (From Ground) | 28" |
| Seat Height (From Ground) | 18" |
| Seat Cushion Size (L x W x H) | 18" x 18" x 2.75" |
| Ground Clearance | 3.5" |
| Frame Material | Aluminum Alloy |
| Wheels Material | Polyurethane Non Flat |
| Size of the Front Wheels (D x W) | 7" x 1.8" |
| Size of the Rear Wheels (D x W) | 12.5" x 2.3" |
| Power Chair Turning Radius | 33" |
| Battery Type | Lithium NCM 622 |
| Battery Capacity | 6.6 Ah |
| Battery Voltage Output | DC 24V |
| Battery Weight | 4 lbs |
| Motor Type | Brushless Eco-Drive |
| Motor Power | 250W |
| Motor Voltage Input | DC 24V |
| Brake System | Intelligent Electromagnetic Brake |
| Controller Type | Dual Core Twin Drive |
| Controller Power Input | AC 100-220V, 50-60Hz |
| Voltage Output/Current | DC 24V, 2A |
Forcemech Navigator Portable Electric Wheelchair Manual
If you need more information on the specifications, installation, etc -- Please check out the Owner's Manual.
Forcemech Navigator Portable Electric Wheelchair Warranty
Forcemech International LLC. offers a limited warranty to your Navigator series and its parts against defects in materials and/or workmanship, contact us immediately if you notice there is an ongoing issue with your power chair.
1. Main frame – five years
2. Motors – two years
3. Controller Box(CPU) – one year
4. Batteries – one year
5. Joystick Controller – one year
There are exclusions to our limited warranty:
1. Damage to the power chair caused by exceeding the weight limit of 397lbs.
2. Damage to the power chair caused by accidents or natural disasters.
3. Damage to the power chair due to improper use and handling.
4. Modifying power chair with unauthorized installation of components not from Forcemech.
5. Consumables such as cushions, tires and bearings are not covered.
6. This warranty does not apply to routine maintenance and adjustments.
7. This warranty only applies to the original buyer, and is not transferable.
